Control Systems
The Control System

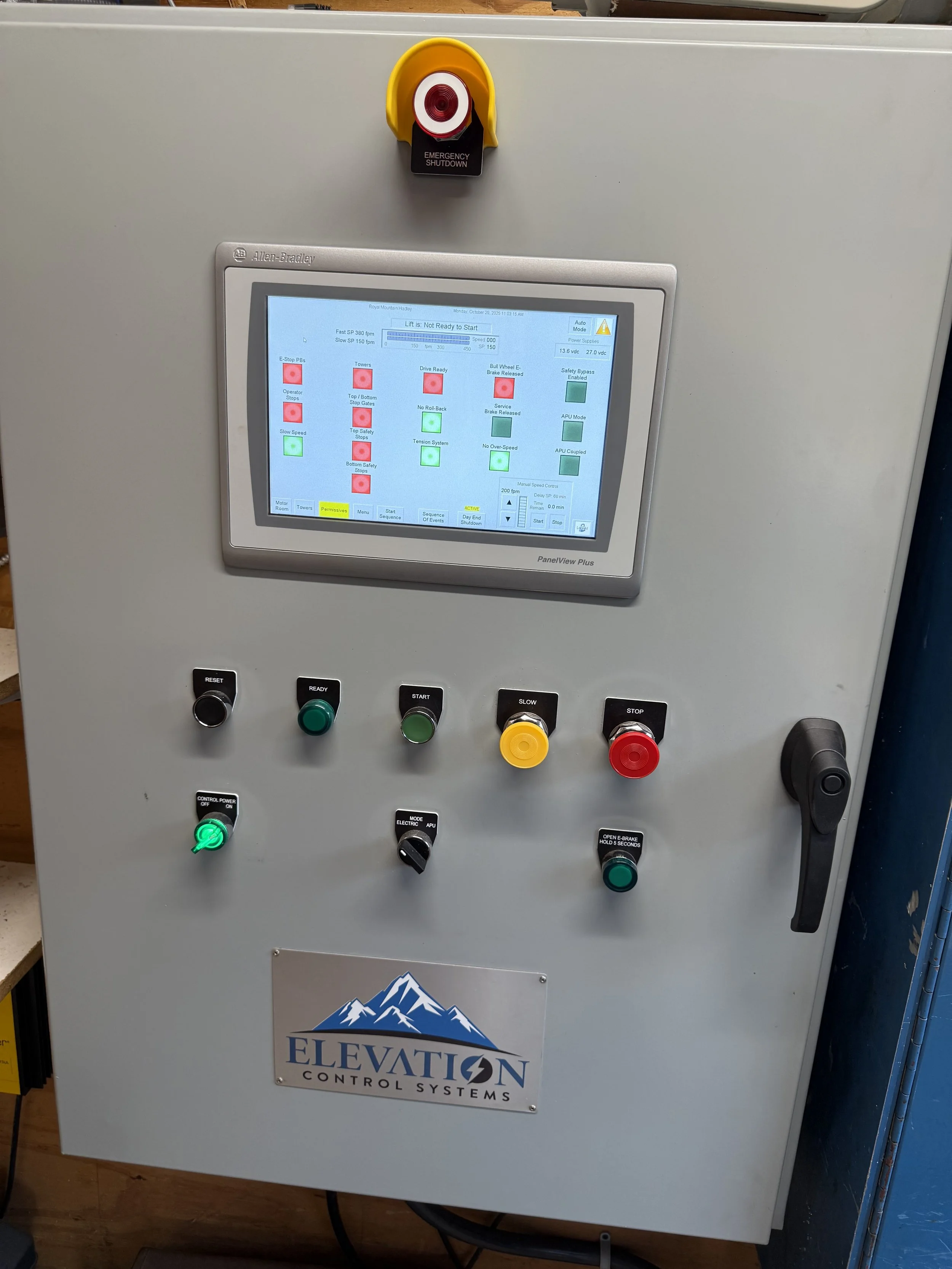

Panel Front Outside
Panel Door Inside

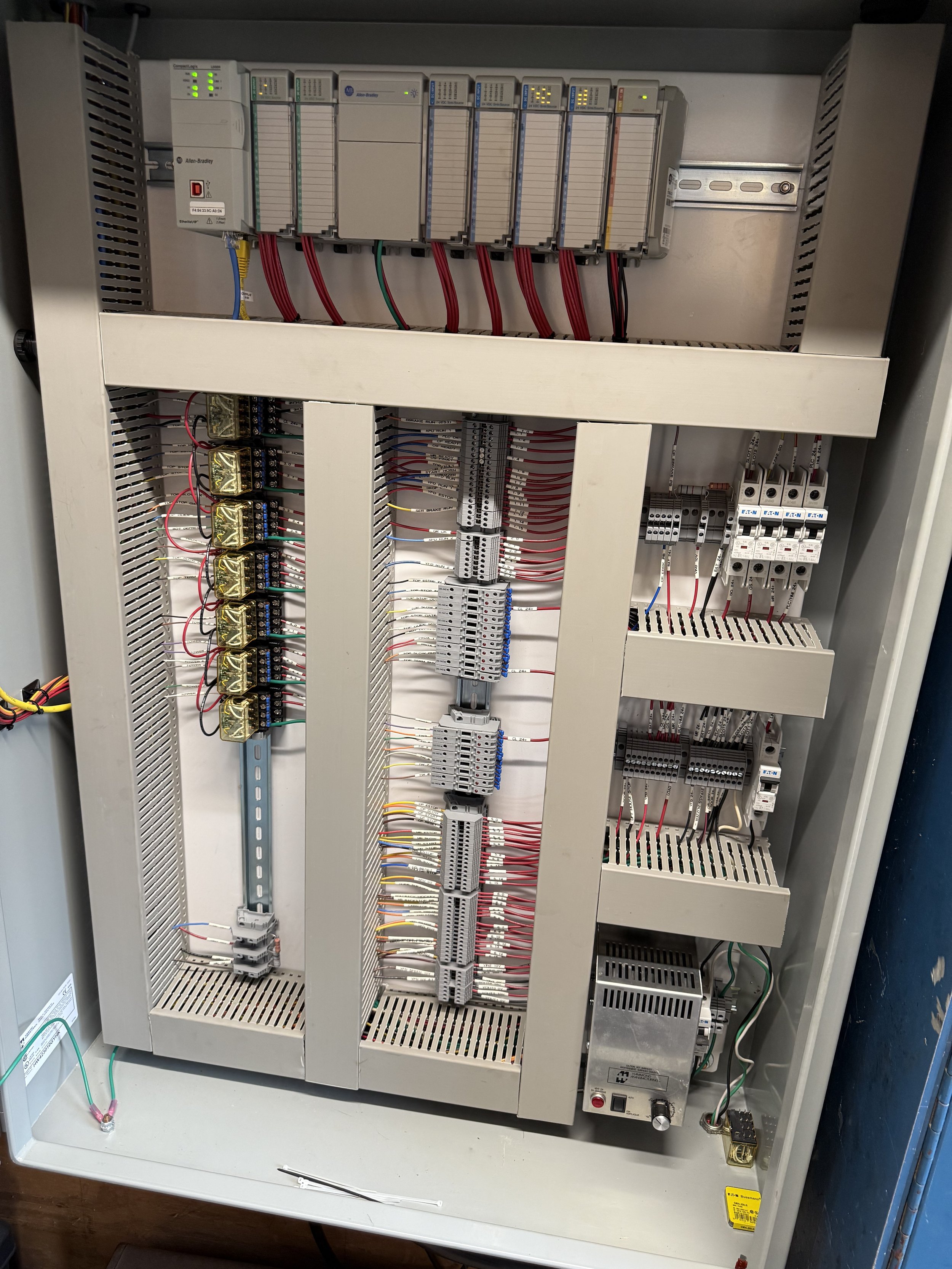

Panel Front Inside
The Control Panel is a high quality sealed 30”x 48’’enclosure.

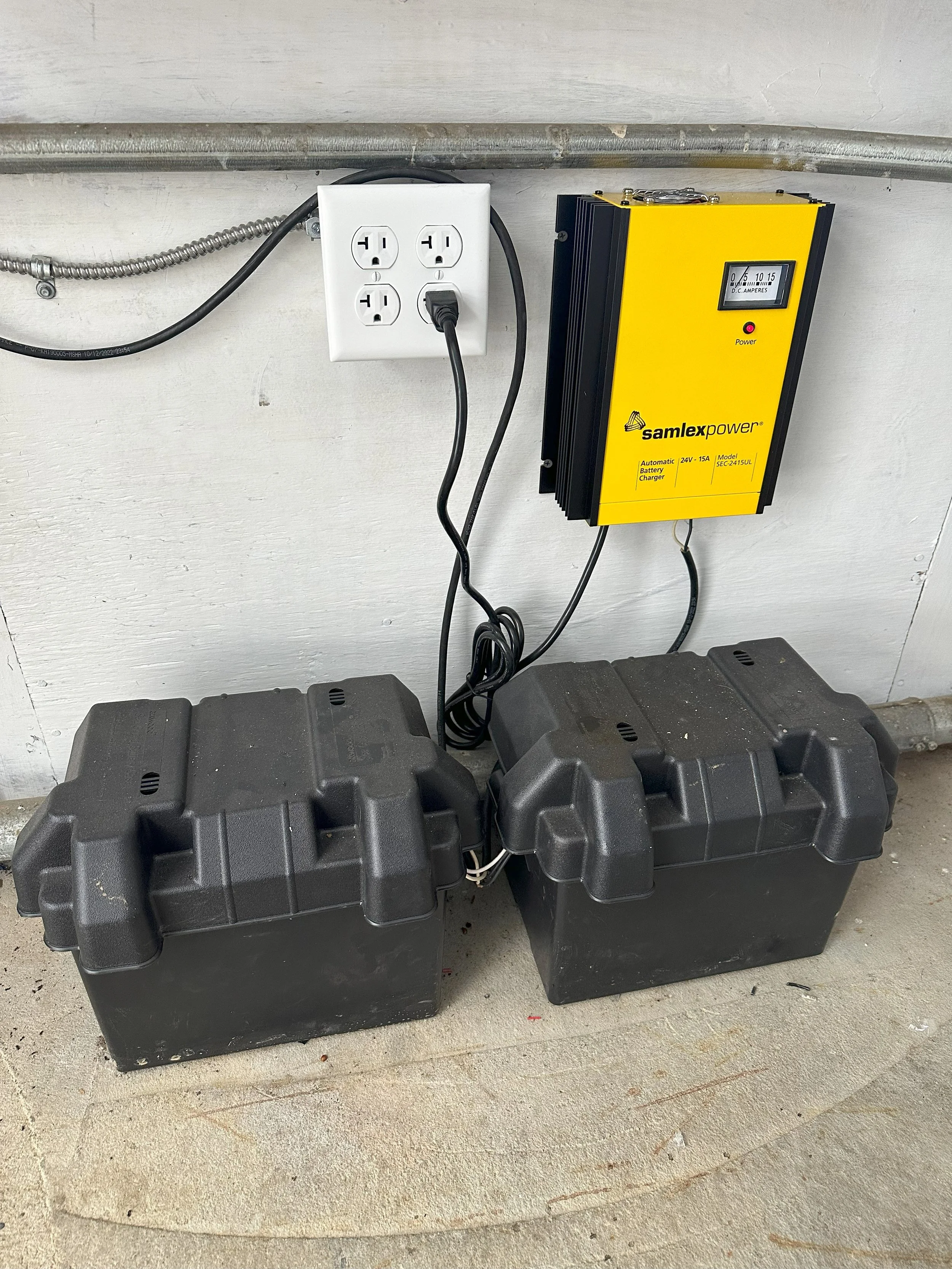

24v power source supplied by storage batteries with 24v auto charger.
Whats inside:
Allen Bradley HMI
Allen Bradley PLC
Low voltage fuses
Lightening Protection Grounding
24V and 120V breakers
Labelled terminal strips and wiring for easy interconnect to existing or new systems
120v Heater
Manual key switches
Manual push and push/pull switches
Digital volt meter
Bypass horn/Alarm

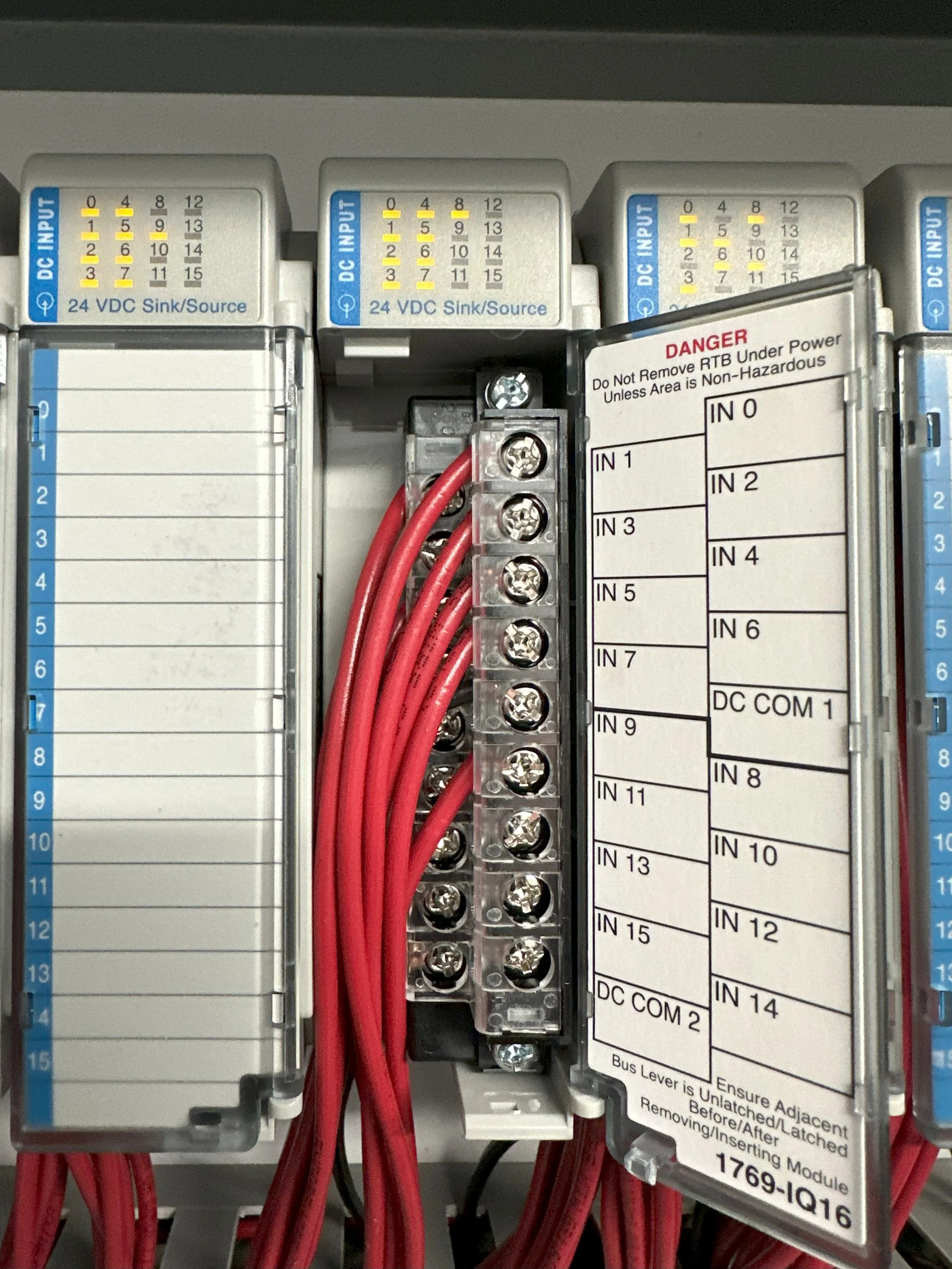

PLC Card Quick Change
24v Power Supply

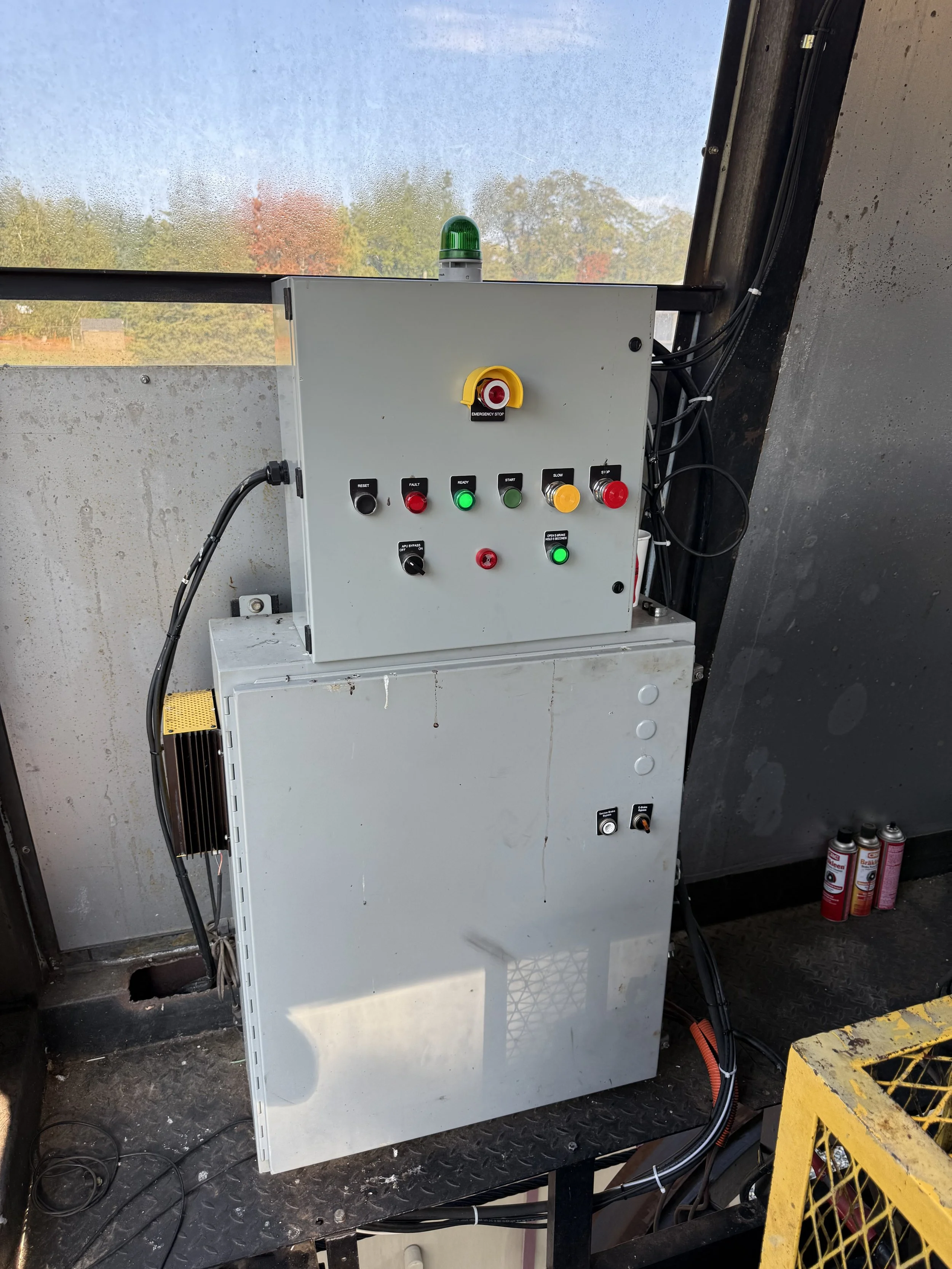

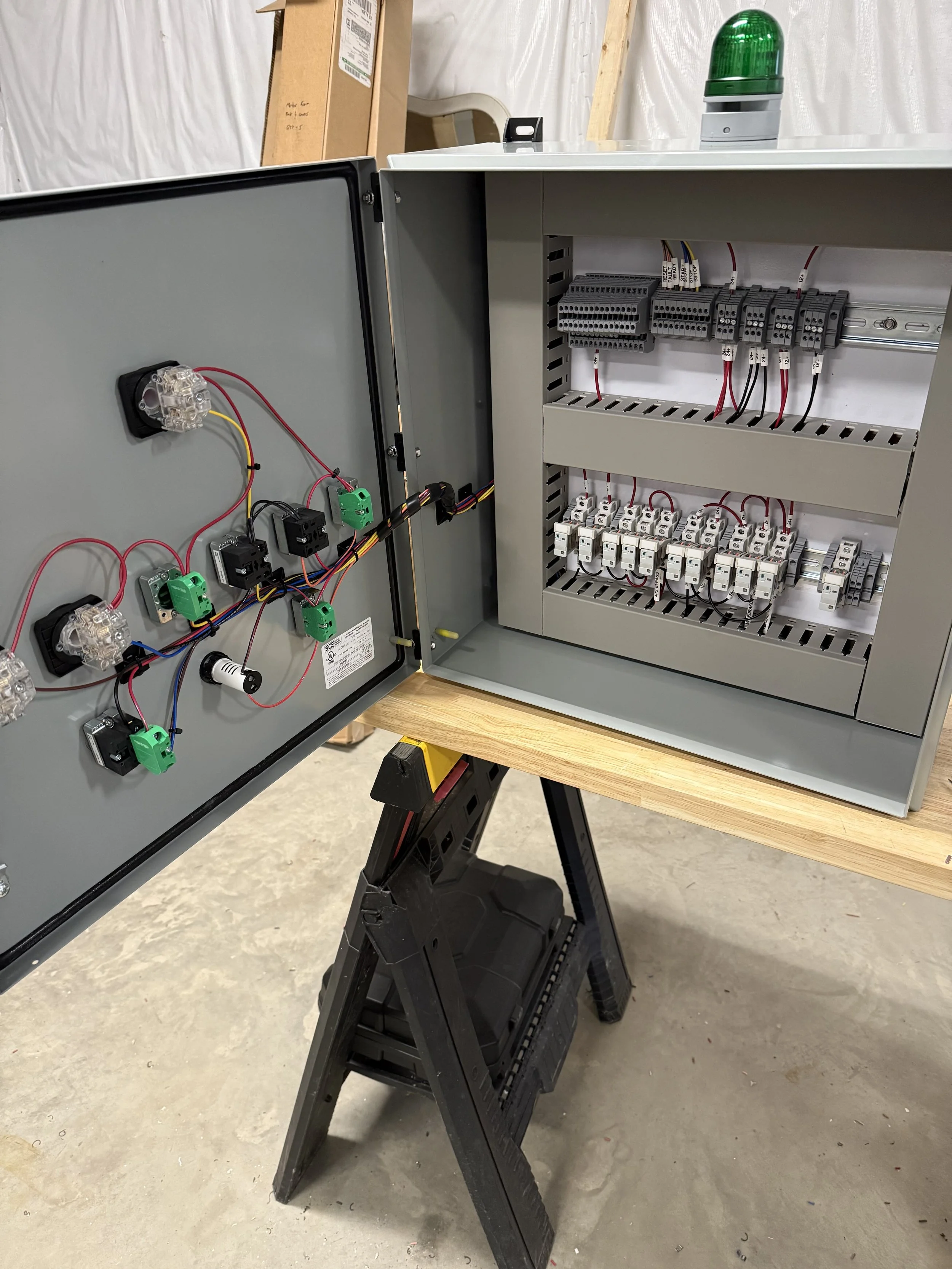

Motor Room Panel
Panel Front Outside
Panel Front Inside
The Motor Room Panel is a high quality sealed 20”x 20’’enclosure.
The Motor Room Panel is the Junction for all field wiring at the base terminal. From here the circuits are connected to the main control panel through a sealed 37c Cable.
Whats inside:
Labelled terminal strips and wiring for easy interconnect to existing or new systems
Fuses/Relays
Manual key switches
Manual push and push/pull switches
Bypass horn/Alarm

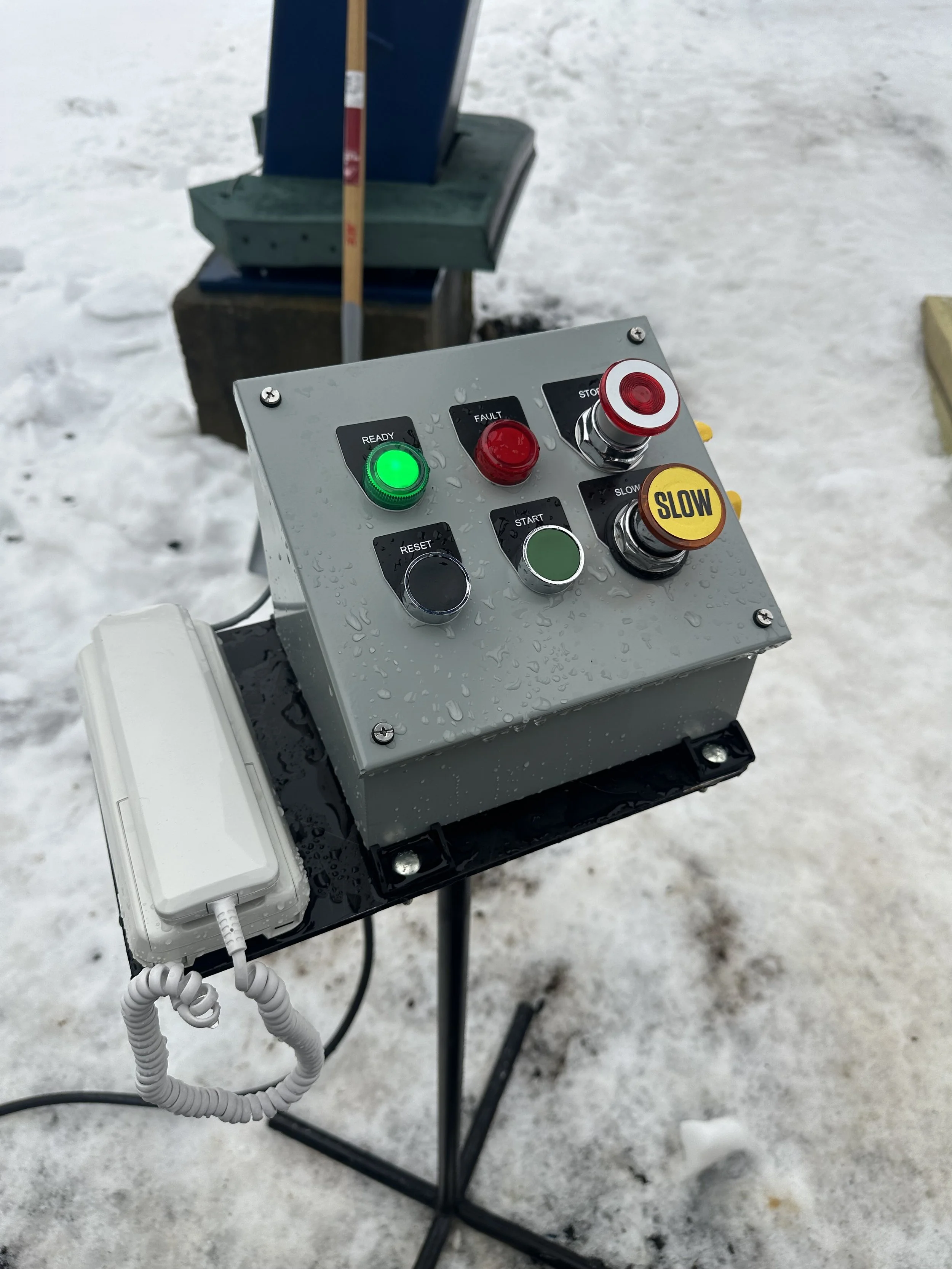

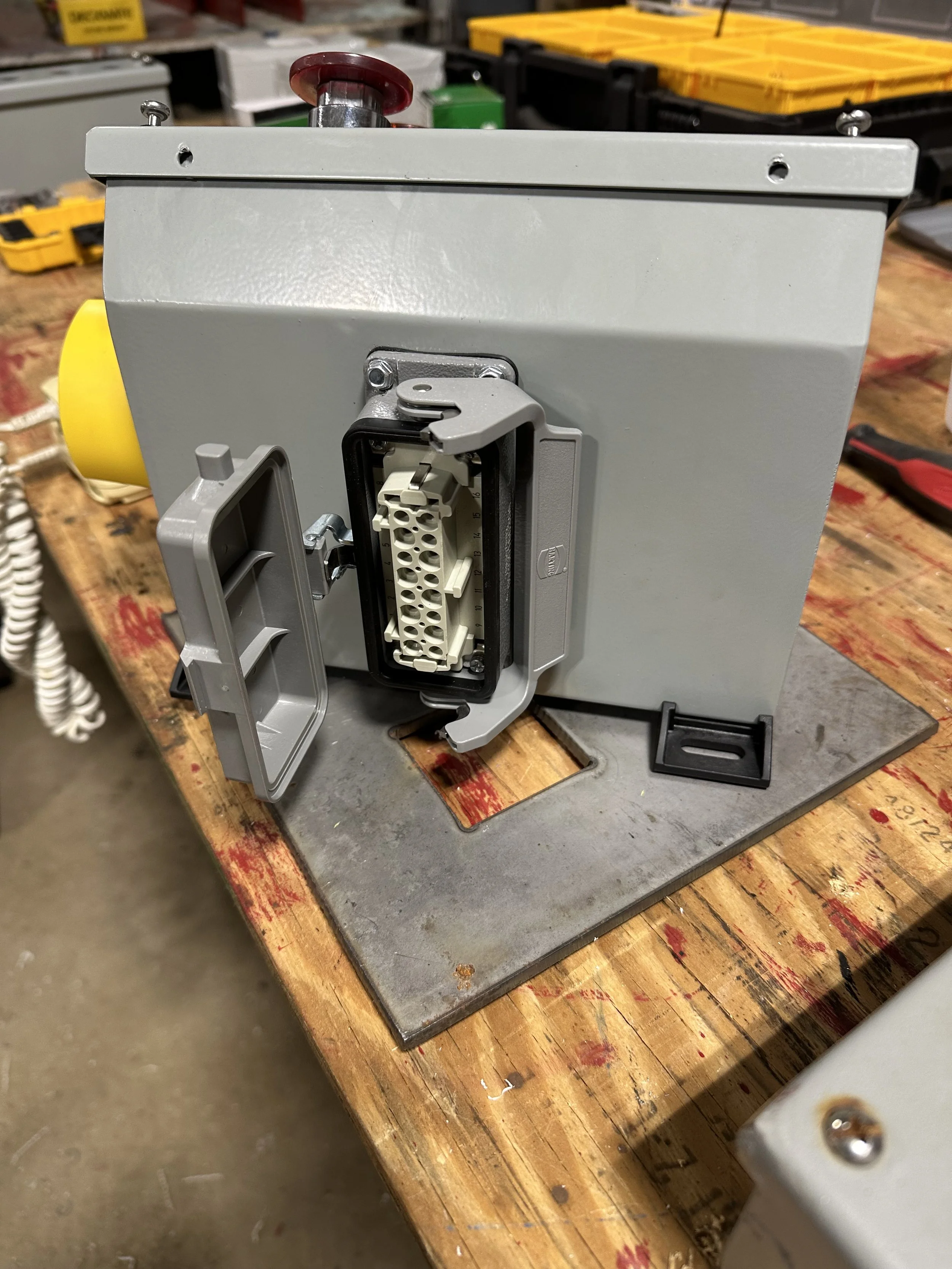

Operator Station
Operator Station

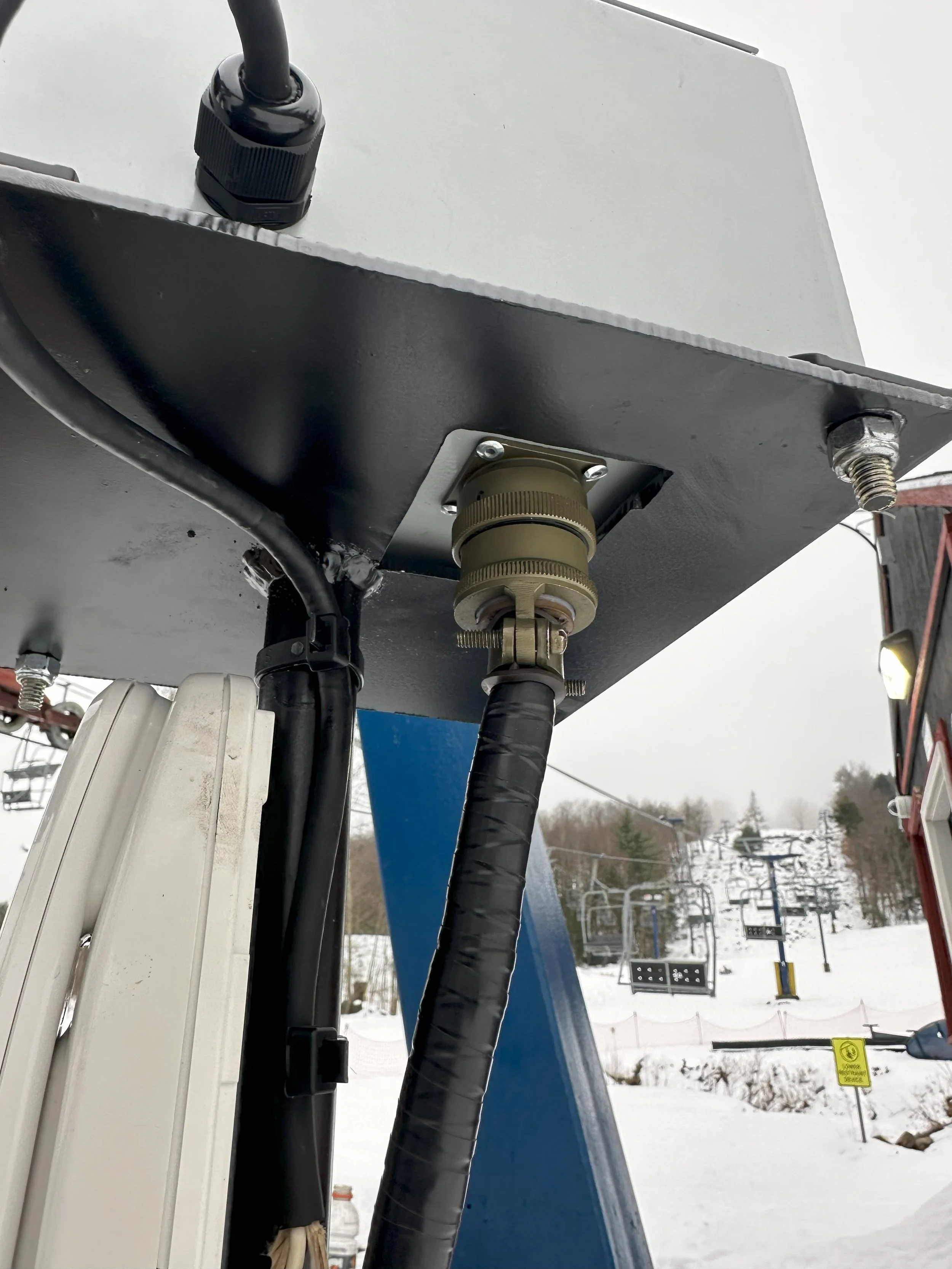

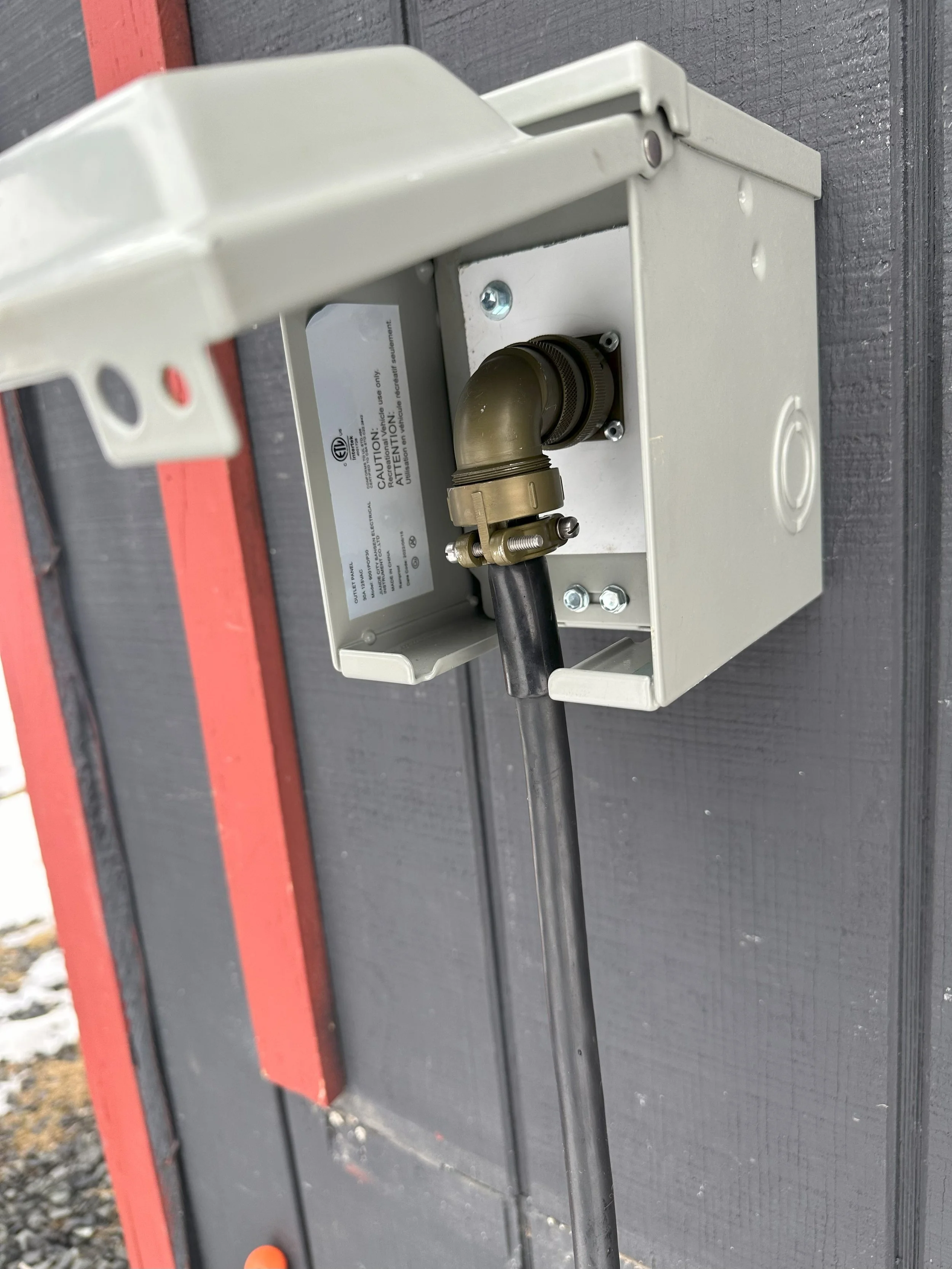

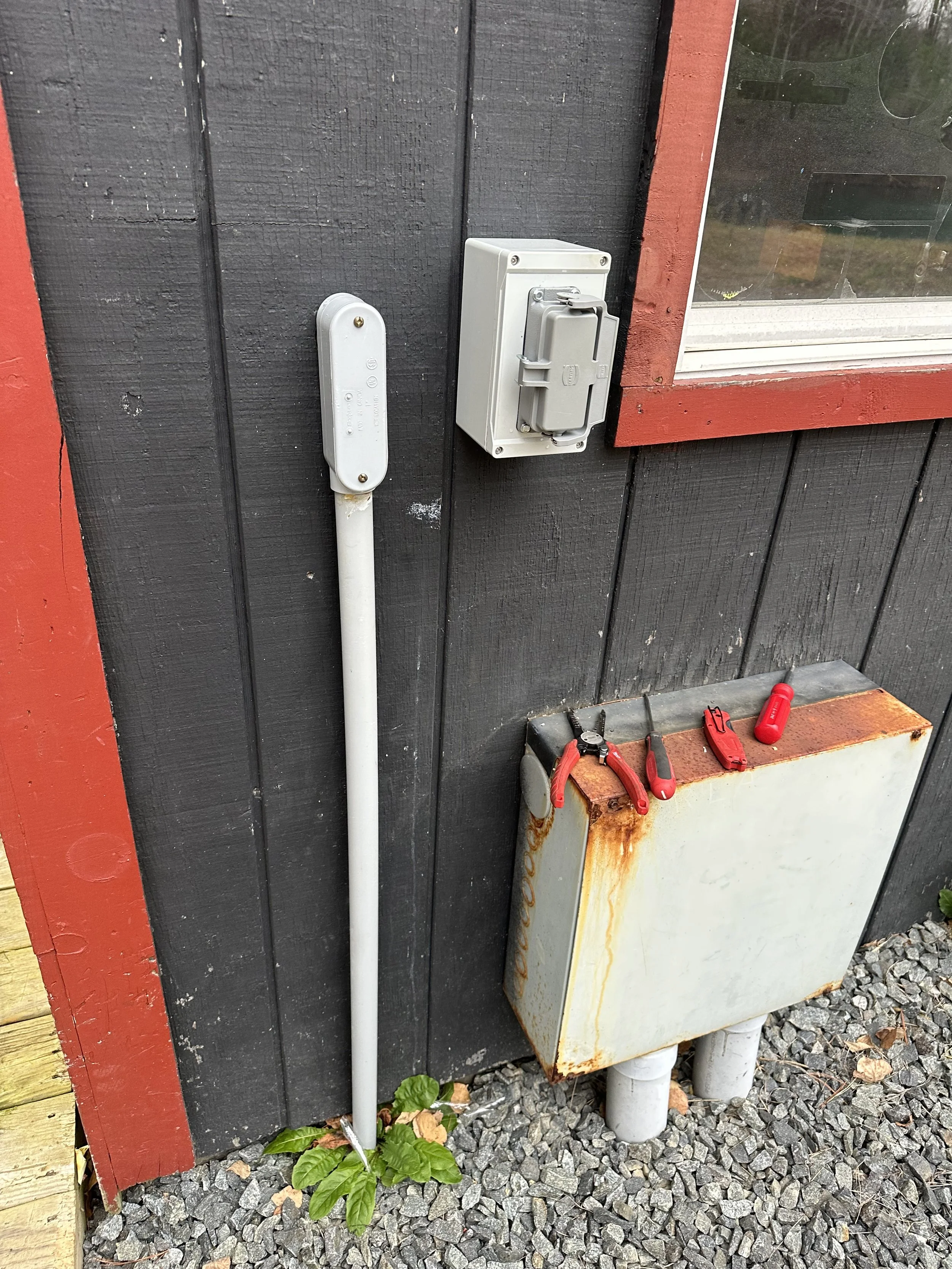

Operator Cord Quick Connect
Operator Cord Quick Connect
The Software/ User Interface
Main Screen
Tower Screen
Permissive Screen

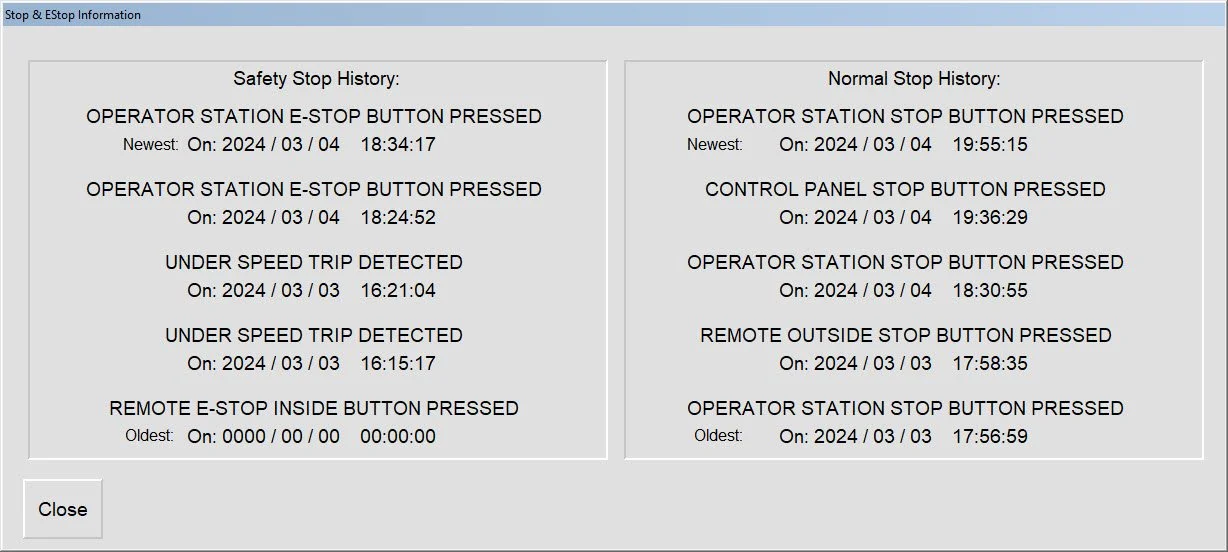

Stop History Screen
Software Advantages available:
Advanced Speed monitoring
Individual Circuits for all inputs (If lift prepared)
Real time monitoring of all switches
Bypass features of circuits without jumper wires
Acceleration / Deceleration Monitoring, Alarms, and Trips
Overspeed / Underspeed Monitoring, Alarms, and Trips
24v/12v Monitoring
Current Monitoring
Sequence of Events internal memory
Easy diagnostics of existing systems
Service brake application tuning
Remote diagnostics/software updates with Ethernet connection
Quick Connect Operator Pedestal and jumper plug

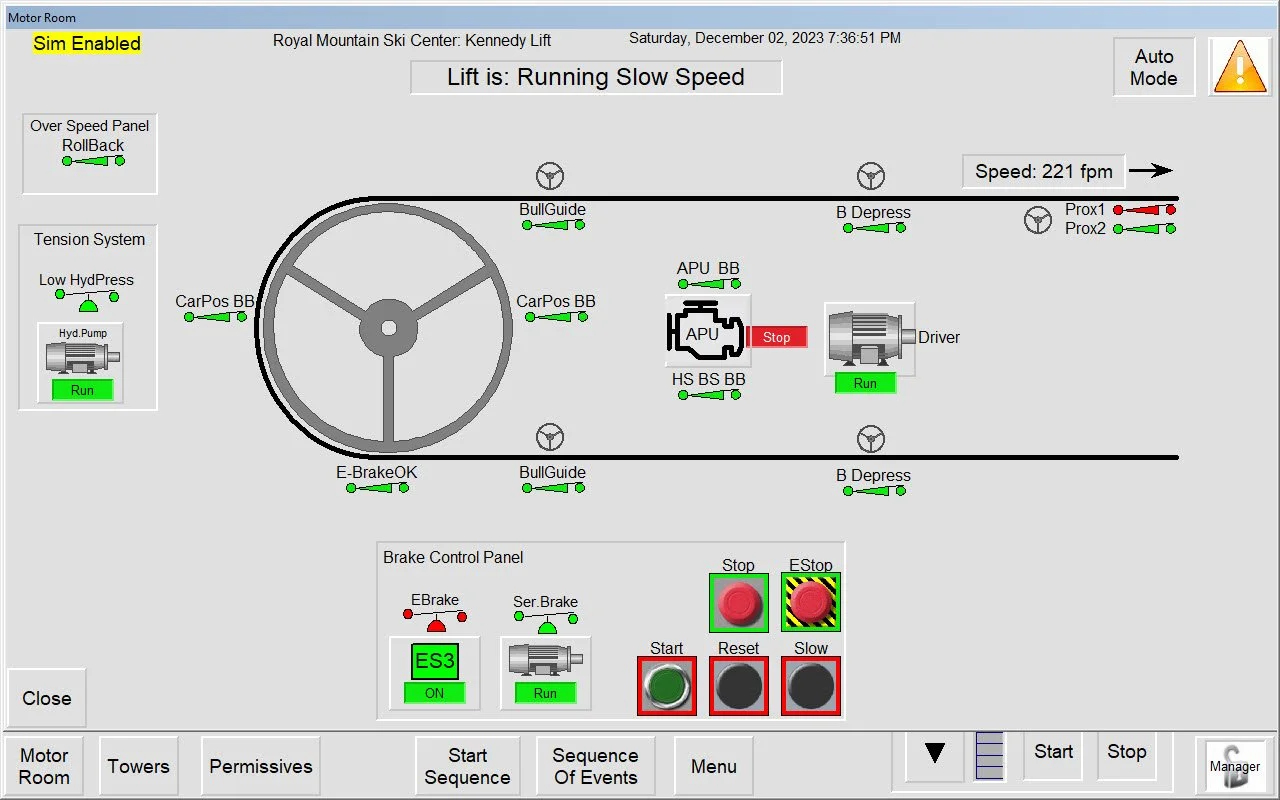

Motor Room Screen

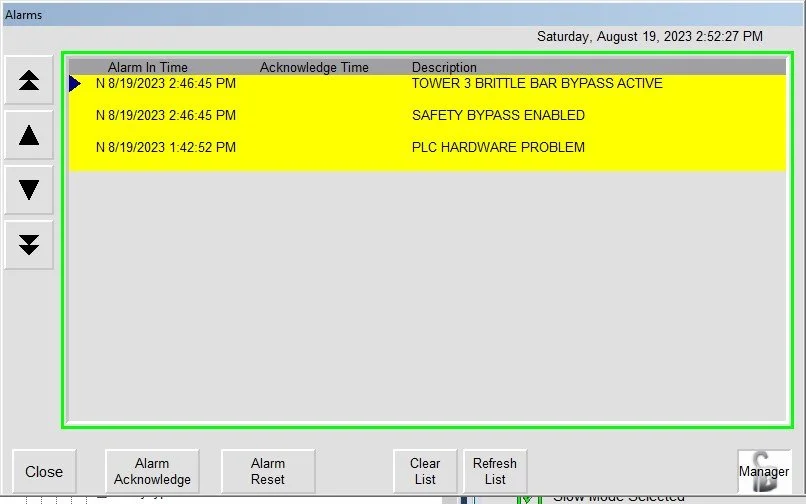

Alarm Screen
